ArcAgent™ Auto Welding Intelligence
Designed to provide robust, off-the-shelf real-time monitoring of weld count, weld length (duration), process set-point parameters (voltage, current, wire feed, gas flow) total arc time, total wire used, and total clamp time. For use in automated welding applications.
Description
Features
Hardware
- Monitor (external sensors required) – Arc voltage – Arc current – Wire feed speed – Gas flow – Total arc time – Total wire used – Total gas used – Total clamp time – Average current – Average wire feed speed – Deposition – Deposition rate
- External interfaces to cell control
- Part Tracking™ control
Technical
- Rugged and sealed enclosure
- Front panel user interface
- Two line x 16 character illuminated
- LCD display
- Security key for authorized setup/reset
- Ethernet PC communication via RJ-45
- Stack light for quick status indication
- Weld and part fault outputs available
Software

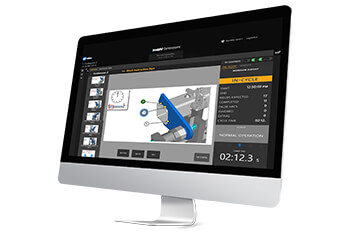

- Insight Centerpoint™ capabilities (license must be purchased) Note: See Insight Centerpoint™ literature for more detail.
Additional Features:
- 8 digital inputs / 8 digital outputs
- EtherNet/IP communication (32 bytes in/32 bytes out)
- USB-PC communication
- Selectable sampling rates of 1, 3 and 5 kHz (volts and amps) Note: Compatible with Insight Centerpoint™
