Description
Description

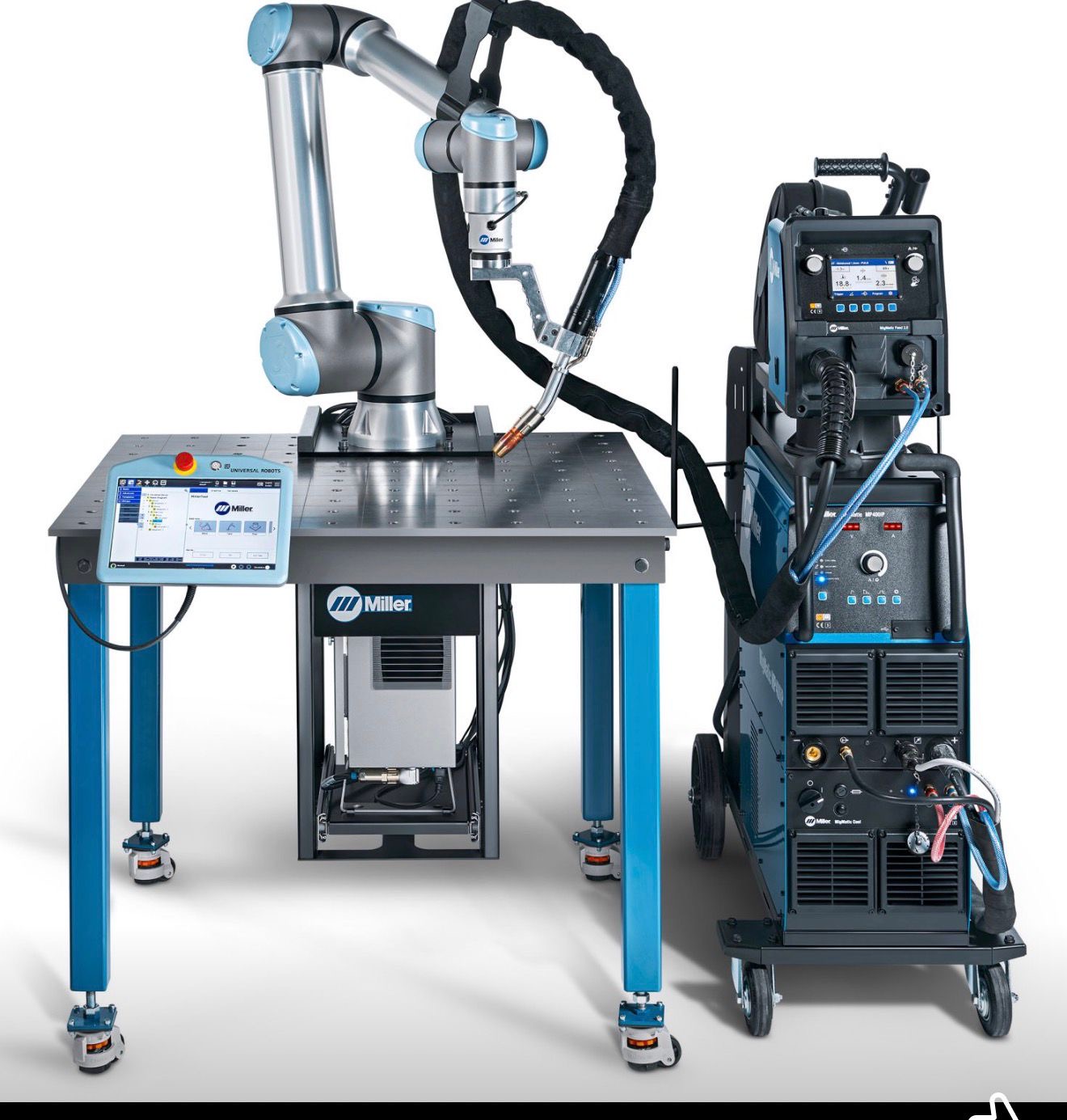

Designed for intuitive ease of use for various skilled welders that are new to robotic welding. Advanced features are included to tackle more challenging welding applications.
Features- 3D visualization, Weaving, Tacking, Stitching, Offset, Multipass, Surfacing.
Power Source
Miller MigMatic MP S400iP synergic Pulsed MIG/MAG System offers
full flexibility. All modules are bespoken to the system and designed for
trouble free, high productivity welding. Never has it been so easy and
straight forward to achieve excellent welding performance. With the
new automation feeder a seamless communication between the UR cobot and the power source has been established to enable an easy entry
into automation.
Accessories- ArcControl, Accessory Management
Cobot
UR 12e
• IP 54
• Payload 12,5kg
• Reach 1300 mm
• 6 rotating joints
• Power supply voltage: 12/24 V
• Power supply:
2 A (Dual pin), 1 A (Single pin)
Teach Pendant
• IP54
• Size: 300 mm x 231 mm x 50 mm
• Weight 1,6 kg
Control box
• IP44
• Size: 460 mm x 449 mm x 254 mm
• Weight 12 kg
• Power Source: 100-240 VAC, 47-440 H
