Description
Features

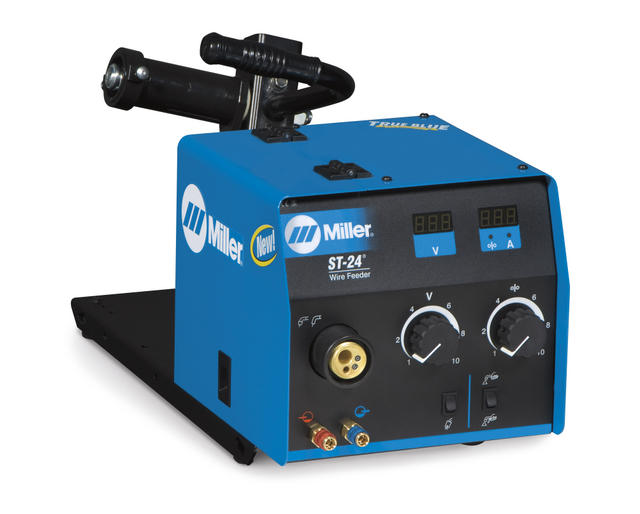

Industrial, four-roll gear-driven, cast aluminum drive system with heavy-duty motor.
Provides exceptional feed performance, reliability and wire speeds ranging from 1.3-20 meters per minute.
“No tools required” quickchange, dual-groove, reversible drive rolls.
Large diameter design (43 mm) provides smooth, positive and accurate wire feeding with long uninterrupted service life.
Adjustable run-in and burnback controls
allow the operator to set the optimum arc starts and stops, reducing wire stubbing, arc flaring or wire burning back.
Wire jog feature
enables the operator to thread the wire through the torch, without the wire being live.
Voltage and wire feed speed settings
for easy and accurate control of welding parameters.
Dual digital meters
display clear, precise readings of arc voltage, wire feed speed and/or amperage. Can be set to hold last reading.
2T/4T latching torch trigger.
Allows the operator to weld for extended periods without having to maintain pressure on the torch trigger.
Gas purge
feature.
Quick-connect coolant fittings
provide easy hook up for watercooled torches, no tools required.
