Auto Remote Sense™ (ARS)

Detects if a remote control is plugged into the 14-pin receptacle and eliminates confusion of a remote panel switch.

Gouging

New XMT® 650 ArcReach® System includes up to 815 amps of gouging power, so operators can remove more material per pass.

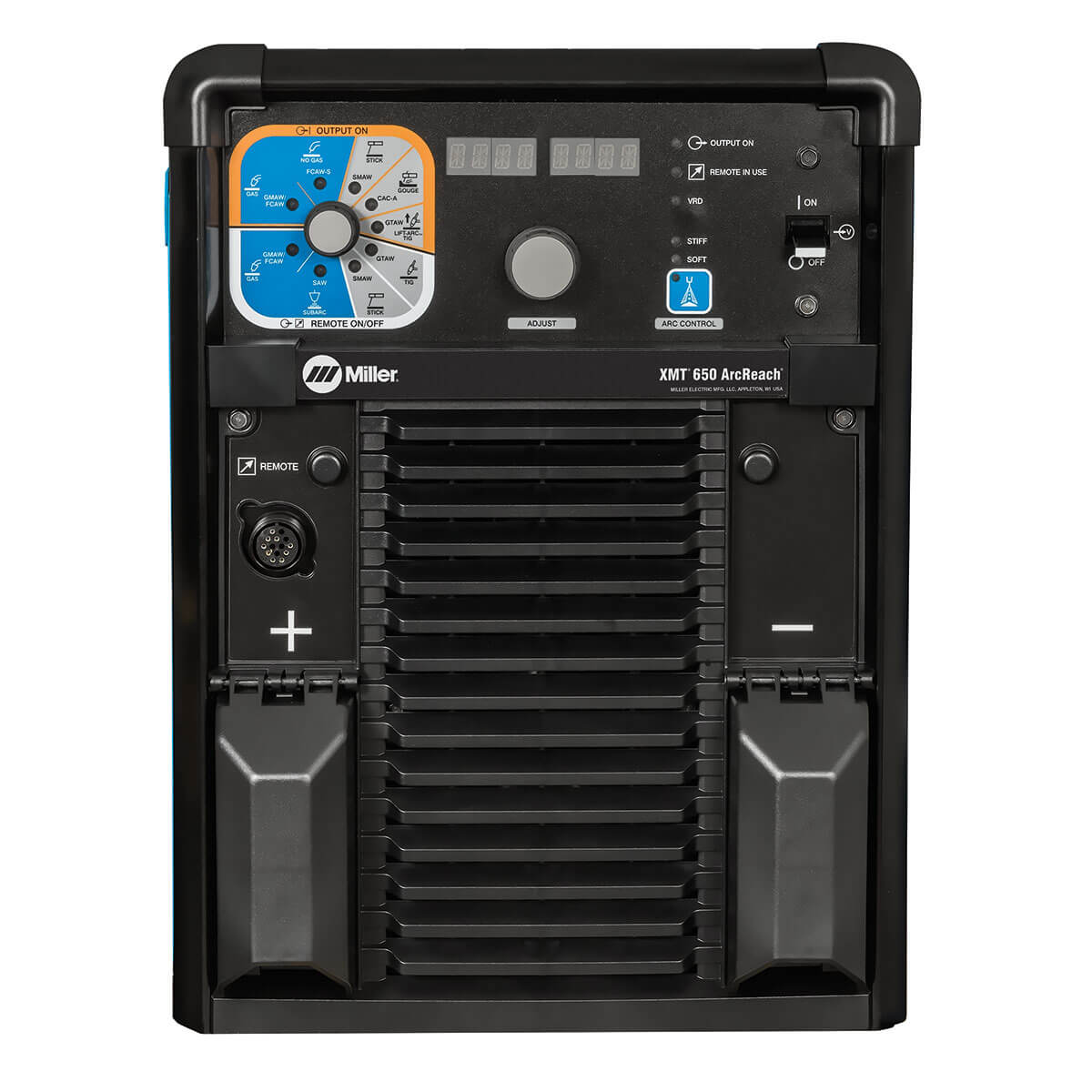

Remote in use indicator

on front panel provides convenient feedback indicating an ArcReach® wire feeder or a compatible 14- pin device is controlling the power source. While under ArcReach control, process and voltage/ amperage adjustments are locked out, preventing accidental changes by personnel other than the welding operator.

Auto Remote Sense™

enables unit to auto matically use remote control if connected to remote control receptacle.

14-pin receptacle

has the flexibility to be used with spool guns, feeders, and remote controls.

Arc control

is active in the stick and solid-wire processes. It allows the operator to customize arc characteristics to match preference, electrode and joint design from a softer arc with more fluid puddle to a stiffer arc with a more controllable puddle. The Star setting is optimized for most applications and pointing the control at Soft or Stiff is optimal for most arc preferences. Control is fully adjustable from 0 to 25 Soft or 0 to 25 Stiff.

120-volt auxiliary power

provides 15 amps of power to run power tools — like grinders, chop saws, drills and lights.

ArcReach®

technology uses the existing weld cable to communicate control information at the feeder, ArcReach® Heater or remote and power source. This technology eliminates the need for control cords, and their associated problems and costs.
